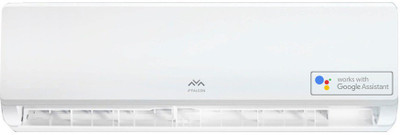

iFFALCON by TCL 2020 Model 1 Ton 3 Star Split Inverter with Wi-fi Smart AC(FAC-12CSD/V3S, White)

Evaporator Fin Type: "Titan Gold"

Condenser Fin Type: "Titan Gold"

Stepped Louvers: "Yes"

Other Body and Design Features: "Digital Temperature Display"

Installation Details: "Split Air-Conditioners:\n-Drilling holes into a brick wall to take out the pipes (excluding core cutting)\n-Fixing a hole sleeve & cap\n-Fixing & connecting indoor and outdoor units with copper pipes & installation of drainage pipes using the standard kit provided by the manufacturer\n-Installation of separately purchased power plug, MCB & power stabilizer\n-Temperature & gas pressure testing\n-Demo of the product\n\nWindow Air-Conditioners:\n-Installing the AC as per the specificationsrequirements\n-Connection to separately purchased stabilizerpower point in the range of the power cord provided by the manufacturer\n-Demo of the product\n\nNote:\nCharges are to be paid directly to the BrandJeeves authorized technician at the time of installation."

Technician Visit Details: "Authorized Service Engineer will do the following:\n\n-Repair or change the defective part\n-Provide replacement to the customer in case part or product is not repairable (only after replacement request approved)"

Uninstallation Details: "For returns, the uninstallation process includes:\n\n- Authorized service engineer visiting the customer's location \n- Uninstalling the product \n- Packing the item \n- Picking up the product"

Indoor Noise Level: "High - 40 dB, Low - 32 dB"

Panel Display: "LED Digital"

Indoor Temperature Indicator: "Yes"

Cooling Coverage Area: "1200 Sq. Ft . sq ft"

Turbo Mode: "Yes"

ISEER: "3.65 WW"

Other Performance Features: "30 Sec Fast Cooling from 27 to 18 Degree, Strong Cooling Till 60 Degree, 100% Copper Tubing"

Air Circulation: "650 CMH"

Auto Air Swing: "Yes"

Air Flow Direction: "4 Way"

Other Air Flow Features: "4 Step Fan Speed"

Anti-bacteria Filter: "No"

Dust Filter: "Yes"

Active Carbon Filter: "No"

Deodorizing Filter: "No"

Air Swing: "Vertical, Horizontal"

LED Backlit Buttons: "Yes"

Night Glow Buttons on Remote: "Yes"

Battery Type: "2 AAA Batteries"

Other Remote Control Features: "I Set, I Feel Technolgy Enabled Remote Controller"

In The Box: "1 Indoor Unit, 1 Outdoor Unit, Remote Control, Installation Kit, 2 AAA Batteries"

Brand: "iFFALCON"

Model Name: "FAC-12CSDV3S"

Type: "Split"

Capacity in Tons: "1 Ton"

BEE Star Rating: "3 Star BEE Rating"

Color: "White"

Series: "E3S"

Cooling and Heating: "No"

Cooling Capacity: "3550 W"

Compressor: "Eco-Tropical Inverter"

Dehumidification: "Yes"

Remote Control: "Yes"

Refrigerant: "R32"

Operating Modes: "Cool Mode, Dry Mode, Fan Mode, Auto Mode�"

Technology Used: "Eco Tropical Inverter Technology"

Condenser Coil: "Copper"

Air Conditioner Technology: "Inverter"

Wi-Fi Connectivity: "Yes"

Indoor W x H x D: "77.7 cm x 25 cm x 20.5 cm"

Indoor Unit Weight: "8.5 kg"

Outdoor W x H x D: "75.4 cm x 55.2 cm x 30 cm"

Outdoor Unit Weight: "25 kg"

Remote Control Weight: "70 g"

Disclaimer: "The manufacturing date can be earlier than the model year."

Power Requirement: "AC 165 - 245 V, 50 Hz"

Annual Electricity Consumption: "1210 Units"

Operating Current: "5.4 A"

Ambient Temperature: "60 degree C"

Other Power Features: "Upto 40% Energy Savings"

Auto Restart: "Yes"

Timer: "Yes"

Child Lock: "Yes"

Quiet Mode: "Yes"

Sleep Mode: "Yes"

Memory Feature: "Yes"

Self Diagnosis: "Yes"

Emergency Operational Button: "Yes"

Additional Features: "Bee Rating Year - 2020, Ambient Temperature - 60 DegreeC, Smart Connectivity, Work with TCL Home App, Work with Google Assistant, Stabilizer Free Operation, Fireproof Control Box"
