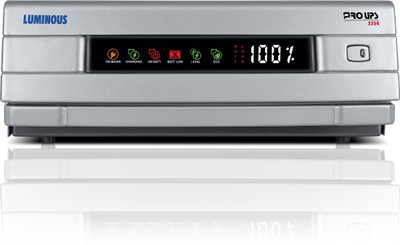

LUMINOUS PRO UPS S/Q WAVE 2250/24V Pro UPS 2250 Square Wave Inverter

: "UNIT AND WARRANTY CARD"

Brand: "LUMINOUS"

Model Number: "PRO UPS SQ WAVE 225024V"

Battery Included: "No"

Back Up Time: "8 hrs"

Load Options: "5 CFL, 5 FAN, 4 TUBE LIGHT, 2 TELEVISION 1 COMPUTER"

Type: "Square Wave Inverter"

Model Name: "Pro UPS 2250"

Mode Type: "Automatic"

Fixture Type: "Table Top"

Technology Used: "square wave"

Solar Power Compatible: "No"

Switch Type: "POWER ACTIV SWITCH"

Efficiency: "94.1 %"

Output Voltage: "220V AC"

Output Frequency: "50+-2.5Hz"

Output Power: "1600 W"

Change Over Time: "8 ms"

Change Over Voltage: "90v"

Surge Rating: "2000 VA"

Overload Rating: ">100%"

Other Output Features: "Short Circuit Protaction, Overload Protaction"

Input Voltage: "90+-5V"

Input Frequency: "45-55 Hz"

High Cut Input Voltage: "290"

High Cut Recovery Input Voltage: "280+-10V"

Other Input Features: "100-290V"

Recharge Time: "10-12 Hrs"

Number of Batteries: "2"

Battery Boost Voltage: "14+-.05"

Battery Charging Current: "20 amp"

Replacement Battery: "Yes"

Compatible Battery Types: "Lead Acid, Tubular, Flat Plate, SMF, VRLA"

Compatible Battery Make: "Sukam, Luminous, Exide, Okaya, Microtek, Local"

Other Battery Features: "3 Mode Battery Charger"

Storage Temperature: "0-45 C (32-113 F)"

Operating Temperature: "0-45 C (32-113 F)"

Other Environmental Features: "Capable of running heavy loads such as laser printers, photo-copies, scanners etc."

Emergency Power Off: "Yes"

Display Type: "LED"

USB Charging Port: "No"

Protection Against: "Overload, Deep Discharge, Short-circuit, Reverse Polarity & Input Mains Protection Thtough MCB"

Cooling System: "Fan Systems"

Other Convenience Features: "Smart Charge Technology that can charge battery quicker than normal long-up UPS"

Width: "33.8 cm"

Height: "15 cm"

Depth: "40 cm"

Weight: "19.3 kg"

Corrosion Resistant: "Yes"

Other Features: "95 Volts Charge battery with full current even at 95 volts, 3 mode battery charger, Can run printerphoto-copier"

Warranty Summary: "2 YEARS MANUFACTURED WARRANTY"

Service Type: "ON-SITE"

Covered in Warranty: "2 YEARS MANUFACUTURED WARRANTY"

Not Covered in Warranty: "PHYSICAL DAMAGE"
