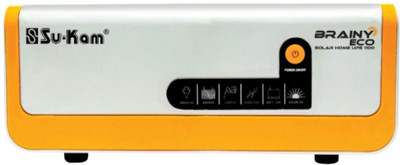

Su-Kam 1600/24V Brainy Eco Pure Sine Wave UPS Pure Sine Wave Inverter

: "1 Inverter, Warranty Card"

Brand: "Su-Kam"

Model Number: "160024V"

Battery Included: "No"

Load Options: "20 Tubes or 7 Tubes, 1 Personal Computer or 1 TV, 8 Fans or 1200W Bulb Load"

Type: "Pure Sine Wave Inverter"

Model Name: "Brainy Eco Pure Sine Wave UPS"

Mode Type: "UPS Mode Wide-UPS Mode (To Enhance Operating Input Voltage Range), Solar Priority Mode, Solar Mode"

Material: "Cabinet: Metal"

Fixture Type: "Table Top"

Technology Used: "Automatic Compensation Technology, SMPS Based Battery Charger with Automatic Power Factor Correction"

Solar Power Compatible: "Yes"

Switch Type: "Dual Inline Package (DIP) Switch"

Efficiency: "80% %"

Output Voltage: "175 - 235 V"

Output Frequency: "50 +- 0.1"

Overload: "Above 100%"

Change Over Time: "12 ms"

Other Output Features: "Crest Factor: 3:1"

Input Voltage: "W UPS - AC 90 V to AC 290 V|UPS - AC 185 V to AC 265 V"

Input Frequency: "45 - 65 +- 0.5"

Low Cut Input Voltage: "AC 85 +- 10 V"

Low Cut Recovery Input Voltage: "AC 90 +- 10 V"

High Cut Input Voltage: "AC 290 +- 10 V"

High Cut Recovery Input Voltage: "AC 275 +- 10 V"

Battery Type: "Sealed Maintenance Free, Lead Acid, Tubular"

Number of Batteries: "2"

Battery Boost Voltage: "14.4 V Temperature Compensation"

Battery Voltage: "13.6 Temperature Compensation"

Battery Charging Current: "15 +- A, 10 +- 1.5 A, 5 +- 1.5 A (Depending Upon Selected Setting by User)"

Display Type: "LED"

Display Indicator Functions: "Mains On, Charge, Battery Low"

USB Charging Port: "No"

Protection Against: "Over Current, PV Reverse Polarity, High Temperature"

Cooling System: "Natural Air Cooling"

Other Convenience Features: "Continuous Battery Charging Even When Voltage Drops as Low as 90 V"

Width: "40.7 cm"

Height: "17.2 cm"

Depth: "30.4 cm"

Weight: "15.54 kg"

Corrosion Resistant: "Yes"

Warranty Summary: "2 Years Warranty"

Service Type: "After Sales Service and Support for India: 918800500500"

Covered in Warranty: "Warranty Against Manufacturing Defects"

Not Covered in Warranty: "Manual Damage to the Product is Not Covered Under Warranty. Unauthorized Tampering of the Product would Void the Warranty Claim"
