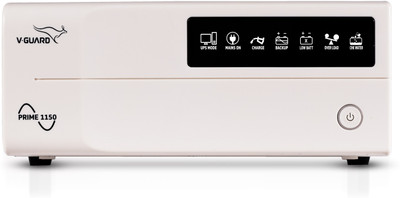

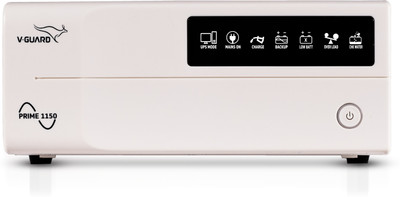

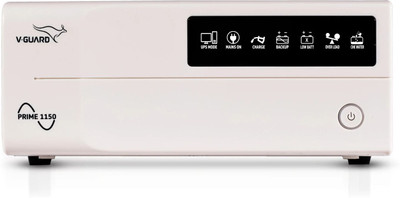

V-Guard Prime 1150 1000VA/12V Pure Sine Wave Inverter

: "Prime 1150 Inverter, User Manual cum Warranty Card"

Brand: "V-Guard"

Model Number: "Prime"

Battery Included: "No"

Back Up Time: "8 hrs"

Load Options: "LED TV, FAN, SET TOP BOX, ROOM COOLER, BULBCFL, TUBE LIGHT"

Type: "Pure Sine Wave Inverter"

Model Name: "1150 1000VA12V"

Mode Type: "UPS Mode, Normal Mode"

Material: "High grade ABS front and with CRCA cabinet"

Fixture Type: "Table top"

Technology Used: "Digital Signal Controller with PWM Technology for Pure Sinewave"

Solar Power Compatible: "No"

Switch Type: "Power switch, Battery type selection, Mode selection, Performance selection"

Efficiency: ">85 %"

Output Voltage: "User Selectable Output, 240 V in High Performance mode, 220 V in Normal mode, 230 V in UPS mode"

Output Frequency: "50 Hz +- 0.5 Hz in Backup mode"

Overload: "Automatic Overload Sensing with 5 trials in Normal Mode"

AC Output Types: "5 Pin in 6 A Socket"

Output Power: "800 W"

Change Over Time: "10 ms"

Change Over Voltage: "95 V in Mains Low and 295 V in Mains High"

Surge Rating: "2000 VA"

Overload Rating: "Up to 200%"

Other Output Features: "Special feature for inverter refrigerator compatibility (Accessible through Selection Switch)"

Input Voltage: "90 V-295 V"

Input Frequency: "47-53 Hz in UPS mode and 40-55 Hz in Normal Mode. Generator Compatible"

Low Cut Input Voltage: "90 V"

Low Cut Recovery Input Voltage: "105 V"

High Cut Input Voltage: "295 V"

High Cut Recovery Input Voltage: "285 V"

Battery Type: "Compatible with Flat Plate, Tubular, SMF and Local batteries"

Recharge Time: "8-12 hours depending on battery capacity"

Number of Batteries: "1"

Battery Boost Voltage: "14 - 14.5 V and Automatically set according to the battery connected"

Battery Voltage: "13.6 V"

Battery Capacity: "12V 80-230AH"

Battery Charging Current: "Selectable - 10 A, 15 A"

Replacement Battery: "Yes"

Replacement Battery Type: "Sealed Lead-Acid Battery, VentedFlooded Lead Acid Battery"

Compatible Battery Types: "Lead Acid Flat Plate battery, Tubular battery, SMF battery, Local battery"

Compatible Battery Make: "Compatible with all makes, performs best with V-Guard battery"

Other Battery Features: "Battery Deep Discharge Protection, Battery Overcharge Protection, Battery Gravity Builder for Long backup and Life"

Storage Temperature: "273-323 K (-0.15-49.8 Celsius)"

Operating Temperature: "273-318 K (-0.15-44.8 Celsius)"

Noise Level: "Less than 45 dB at 1 m distance"

Other Environmental Features: "Should be installed in a well-ventilated area"

Emergency Power Off: "Yes"

Display Type: "Graphical LED Display"

Display Indicator Functions: "Battery Water Topping, Mains Mode, Battery Charging, Backup, Overload, Short Circuit, Battery Low"

Audible Indicator Functions: "Battery Water topping Reminder, Overload, Short Circuit, Battery Low, Reset Battery Breaker Trip, Changeover"

USB Charging Port: "No"

Protection Against: "Surge, High and Low Mains, Overload, Short Circuit, Over Temperature"

Cooling System: "Temperature controlled Intelligent Fan Cooling System"

Other Convenience Features: "Water Topping Reminder, AC Fuse change is not required, User Selectable Output Voltage Settings, Holiday Mode Selection, Buzzer Mute Option"

Width: "25 cm"

Height: "12 cm"

Depth: "27.5 cm"

Weight: "9.4 kg"

Certification: "BIS Certified Product, UL Certified Components"

Corrosion Resistant: "Yes"

Other Features: "Runs Mixer Grinder up to 750 W and Heavy Loads up to 1000 W"

Warranty Summary: "3-year domestic warranty by V-Guard"

Service Type: "For any warranty related issues, please call the Customer Support -1800-103-1300 (Toll-free), 1860-180-3000(Toll-free)[email protected]"

Covered in Warranty: "Manufacturing defects"

Not Covered in Warranty: "Damage caused due to improper handling"
