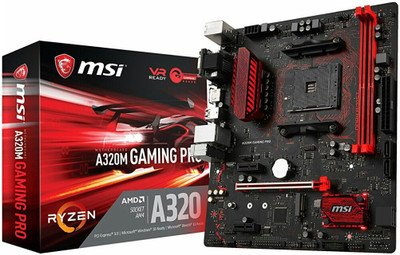

MSI A320M GAMING PRO AM4Socket Micro-ATX AMD A75 Chipset DDR4 Motherboard for Desktop

Sales Package: "A320M GAMING PRO MOTHERBOARD, DRIVER DISK, IO SHIELD, USER MANUAL, 2 SATA CABLE"

Brand: "MSI"

Model ID: "A320M GAMING PRO"

Form Factor: "Micro-ATX"

Socket Type: "AM4"

Compatible Processors: "AMD RYZEN 3 2200G, RYZEN 7"

Chipset: "AMD A75"

Number of Memory Slots: "2 Slots"

Memory Configuration: "32 DDR4 Dual channel memory architecture • Supports non-ECC UDIMM memory • Supports ECC UDIMM memory (non-ECC mode) * 7th Gen A-series Athlon ™ processors support up to DDR 2400 MHz only. Please refer www.msi.com for more information on compatible memory. 2 x DDR4 memory slots, Supports non-ECC UDIMM memory , Supports ECC UDIMM memory (non-ECC mode)"

Memory Frequency: "DDR4 18662133240026672933(OC)3200(OC) Mhz"

RAID Controller: "AMD®A320 Chipset • 4 x SATA 6Gbs ports - Supports RAID 0, RAID1 and RAID 10 • 1 x M.2 slots (Key M) - Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (7th Gen A-series Athlon™ processors) and SATA 6Gbs 2242 2260 2280 storage devices"

RAID Configurations: "RAID 0, RAID1 and RAID 10"

Integrated Graphics card: "1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz* , 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz* , 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz* , Only support when using a 7th Gen A-series Athlon™ processor. * Maximum shared memory of 2048 MB"

External Graphics Card Support: "Yes"

Audio Codec: "Realtek® ALC887 Codec"

Audio Channels: "7.1"

Ethernet Controller: "Realtek® 8111H Gigabit LAN controller"

Ethernet Card: "Realtek® 8111H Gigabit LAN controller"

Ethernet Features: "Realtek® 8111H Gigabit LAN controller"

PCIe x1 Slots, Generation: "1"

Mini PCIe Slots: "2"

SATA 6 Gb/s Headers: "4"

USB 2.0 Headers: "2"

USB 3.0 Headers: "1"

ATX Power Connectors: "2 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)"

Fan Headers: "1 (Processor Fan Headers), 1 (System Fan Headers)"

Front Panel Headers: "1"

VGA/Dsub Connectors: "1"

USB 2.0 Ports, Controller: "2"

USB 3.0 Ports, Controller: "4"

HDMI Ports: "1"

VGA/D Sub Ports: "1"

Audio I/O Channels: "3"

RJ-45 Ethernet Jacks: "1"

PS/2: "1"

OS Support: "Support for Windows® 10 64-bit"

Warranty Summary: "3 YEARS"

Covered in Warranty: "3 YEARS AND LRW SERVICE ALL OVER INDIA"

Not Covered in Warranty: "PHYSICAL DAMAGE & BURNING ARE NOT COVERED IN WARRANTY"

Warranty Service Type: "CARRY IN"
