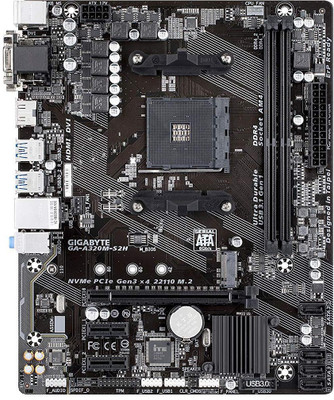

GIGABYTE GA-A320M-S2H AM4Socket Micro-ATX AMD A85X Chipset DDR4 Motherboard for Desktop

Sales Package: "GA-A320M-S2H MOTHERBOARD, DRIVER DISK, IO SHIELD, TWO SATA CABLES, USER'S MANUAL"

Brand: "GIGABYTE"

Model ID: "GA-A320M-S2H"

Form Factor: "Micro-ATX"

Socket Type: "AM4"

Chipset: "AMD A85X"

Chipset Manufacturer: "A320"

Number of Memory Slots: "2 Slots"

Memory Configuration: "32 DDR4 DUAL CHANNEL 2 x DDR4 DIMM sockets"

Memory Frequency: "3200(O.C.)2933(O.C.)2667*24002133"

Buffered Memory: "Yes"

Integrated Graphics card: "1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version."

External Graphics Card Support: "Yes"

Audio Codec: "Realtek® ALC887 codec"

Audio Channels: "7.1"

Audio Features: "High Definition Audio, 245.17.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver., Support for SPDIF Out"

PCI Slots: "1"

PCIe x1 Slots, Generation: "2"

SATA 6 Gb/s Headers: "4"

USB 3.0 Headers: "1"

ATX Power Connectors: "2 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)"

Fan Headers: "1 (Processor Fan Headers), 1 (System Fan Headers)"

Front Panel Headers: "1"

VGA/Dsub Connectors: "1"

USB 2.0 Ports, Controller: "2"

USB 3.0 Ports, Controller: "4"

HDMI Ports: "1"

DVI Ports: "1"

VGA/D Sub Ports: "1"

Audio I/O Channels: "3"

RJ-45 Ethernet Jacks: "1"

PS/2: "1"

Hardware Monitoring: "Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control"

Bundled Software: "Norton® Internet Security (OEM version), cFosSpeed"

OS Support: "Support for Windows 10 64-bit"

BIOS: "1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0"

Advanced Features: "Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD AutoGreen BIOS Setup Cloud Station Color Temperature EasyTune Fast Boot Game Boost ONOFF Charge Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install"

Warranty Summary: "3 YEARS"

Covered in Warranty: "3 YEAR AND LRW SERVICE ALL OVER INDIA"

Not Covered in Warranty: "PHYSICAL DAMAGE & BURNING ARE NOT COVERED IN WARRANTY"

Warranty Service Type: "3 YEARS BY GIGABYTE SERVICE CENTER"
