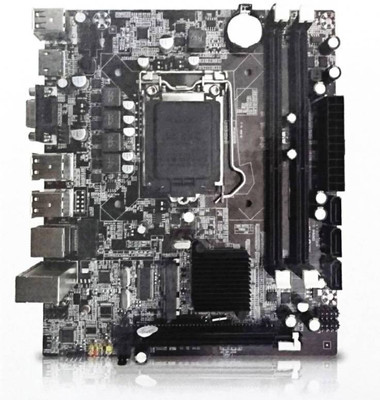

ZEBRONICS ZEB H55 (HDMI - MSATA) LGA 1156Socket Micro-ATX Intel H55 Chipset DDR3 Motherboard for Desktop

Sales Package: "1 UNIT MOTHERBOARD, 1 UNIT SATA DATA CABLE, 1 UNIT DRIVER CD, 1 UNIT BACK PANEL PLATE, 1 UNIT USER MANUAL"

Brand: "ZEBRONICS"

Model ID: "ZEB H55 (HDMI - MSATA)"

Form Factor: "Micro-ATX"

Socket Type: "LGA 1156"

Compatible Processors: "Intel Core i7-800i5-700i5-600i3-500 series processors in LGA 1156"

Chipset: "Intel H55"

Chipset Manufacturer: "Intel"

Number of Memory Slots: "2 Slots"

Memory Configuration: "8GB GB DDR3 2x240-pin DDR3 SDRAM slots memory up to 8GB each slot (total 16GB), supports dual- channel DDR3 10661333 1600MHz memory DDR3 DIMM"

Memory Frequency: "10661333 1600 MHz"

Buffered Memory: "No"

Integrated Graphics card: "INTEGRATED"

External Graphics Card Support: "Yes"

Audio Codec: "Realtek"

Audio Channels: "6"

Audio Features: "5+1 HD AUDIO"

Ethernet Controller: "With 10100Mbps LAN"

Ethernet Card: "With 10100Mbps LAN"

Ethernet Features: "With 10100Mbps LAN"

Wireless and Bluetooth: "Optional and Optional"

PCI Slots: "1"

PCIe x1 Slots, Generation: "1"

PCIe x16 Slots, Generation: "1"

SATA 1.5 Gb/s Headers: "0"

SATA 3 Gb/s Headers: "3"

SATA 6 Gb/s Headers: "0"

USB 2.0 Headers: "2"

USB 3.0 Headers: "0"

ATX Power Connectors: "1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)"

Fan Headers: "1 (Processor Fan Headers), 1 (System Fan Headers)"

Front Panel Headers: "1"

Other Connectors: "1 x HDMI port, 1 x VGA Port, 6 x USB 2.0 Port, Compatible with USB 1.1, 1 x Rj45 Port, 1 x 3-in-1 Audio (Line InLine OutMic In), 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 2 x USB Connectors, Supports 4 x USB 2.0, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors 3 x Serial ATA Connections Ports"

USB 2.0 Ports, Controller: "6"

USB 3.0 Ports, Controller: "0"

eSATA Ports, Controller: "0"

HDMI Ports: "1"

IEEE 1394a Ports: "0"

DVI Ports: "1"

VGA/D Sub Ports: "1"

Audio I/O Channels: "3"

RJ-45 Ethernet Jacks: "1"

PS/2: "0"

Support CDs: "Drivers CDs"

OS Support: "Windows 7, Windows 8, Windows 10"

BIOS: "EFII BIOS"

Advanced Technologies: "Intel Core i7-800i5-700i5-600i3-500 series processors in LGA 1156"

Advanced Features: "Intel Core i7-800i5-700i5-600i3-500 series processors in LGA 1156"

Dimensions: "170 x 40 x 215 mm"

Weight: "265 g"

Warranty Summary: "1 YEAR DIRECT MANUFACTURER"

Covered in Warranty: "NO PHYSICAL DAMAGE, NO BURNT, NO CRACK"

Not Covered in Warranty: "BURNT, BEND & DENTS, ALTERED, MODIFIED, SHORT CIRCUIT"

Warranty Service Type: "REPAIR OR REPLACEMENT"
