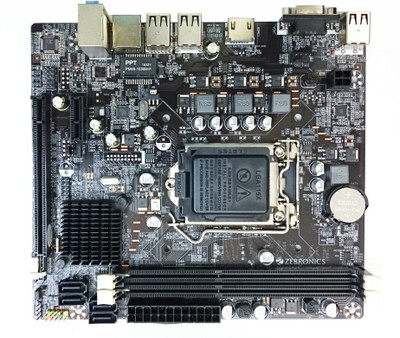

ZEBRONICS ZEB-H61 LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard for Desktop, Workstation

Sales Package: "1 UNIT MOTHERBOARD, 1 UNIT SATA DATA CABLE. 1 UNIT CD, 1 UNIT BACK PANEL PLATE, 1 UNIT USER MANUAL"

Brand: "ZEBRONICS"

Model ID: "ZEB-H61"

Form Factor: "Micro-ATX"

Socket Type: "LGA 1155"

Compatible Processors: "Intel® i7i5i3PentiumCeleron processors in LGA1155"

Chipset: "Intel H61, Intel® H61Chipset"

Chipset Manufacturer: "Intel"

Number of Memory Slots: "2 Slots"

Memory Configuration: "8 GB DDR3 2 DDR3 dual-channel slots, Support DDR3 106613331600MHz memory DIMM"

Memory Frequency: "103313331600 MHz"

Buffered Memory: "No"

SATA 3 Gb/s: "INTEL H61"

Integrated Graphics card: "Intel"

External Graphics Card Support: "Yes"

Audio Codec: "Realtek 662 3x HD Audio"

Audio Channels: "6"

Audio Features: "Realtek 662 3xAudio Jacks for 6 channel High definition audio"

Ethernet Controller: "Supports Realtek 8106E 10100 Mbps"

Ethernet Card: "Supports Realtek 8106E 10100 Mbps"

Ethernet Features: "Supports Realtek 8106E 10100 Mbps"

Wireless and Bluetooth: "Optional and Optional"

PCI Slots: "2"

PCIe x1 Slots, Generation: "1"

PCIe x2 Slots, Generation: "0"

PCIe x4 Slots, Generation: "0"

PCIe x8 Slots, Generation: "0"

PCIe x16 Slots, Generation: "1"

Mini PCIe Slots: "0"

SATA 1.5 Gb/s Headers: "0"

SATA 3 Gb/s Headers: "4"

SATA 6 Gb/s Headers: "0"

USB 2.0 Headers: "2"

USB 3.0 Headers: "0"

ATX Power Connectors: "1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)"

Fan Headers: "1 (Processor Fan Headers), 1 (System Fan Headers)"

Front Panel Headers: "1"

Other Connectors: "1 PS2 mousekeyboard port, 1 VGA port, 1HDMI port, 4 USB 2.0 ports, 1 LAN port, 3 audio jacks, 1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports, 4 x SATA 3Gbs (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header"

USB 2.0 Ports, Controller: "4"

USB 3.0 Ports, Controller: "NA"

eSATA Ports, Controller: "PCI Express"

HDMI Ports: "1"

IEEE 1394a Ports: "0"

DVI Ports: "0"

VGA/D Sub Ports: "1"

Audio I/O Channels: "3"

RJ-45 Ethernet Jacks: "1"

Support CDs: "Drivers CDs"

OS Support: "Windows 7, Windows 8, Windows 10"

BIOS: "AMI BIOS"

Advanced Technologies: "Supports Intel® i7i5i3PentiumCeleron processors in LGA1155"

Advanced Features: "Supports Intel® i7i5i3PentiumCeleron processors in LGA1155"

: "16GB"

Dimensions: "167 x 30 x 170 mm"

Weight: "0.25 g"

Warranty Summary: "2 Year Manufacturing Warranty"

Covered in Warranty: "Manufacturing Defect"

Not Covered in Warranty: "Damage"

Warranty Service Type: "Carry in Service Center"
