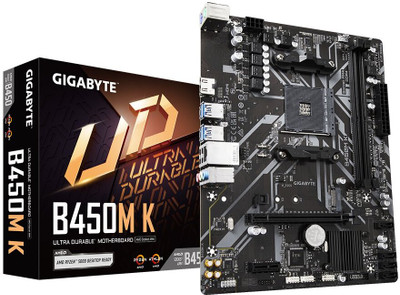

GIGABYTE B450M K AM4Socket Micro-ATX AMD B450 Chipset DDR4 Motherboard for Desktop

USB 2.0 Ports, Controller: "4"

USB 3.0 Ports, Controller: "4"

eSATA Ports, Controller: "0"

HDMI Ports: "1"

IEEE 1394a Ports: "0"

DVI Ports: "1"

VGA/D Sub Ports: "1"

Audio I/O Channels: "3"

Optical S/PDIF Ports and S/PDIF Out ports: "0 (Optical SPDIF Ports)"

RJ-45 Ethernet Jacks: "1"

PS/2: "1"

Sales Package: "Motherboard::IO Shield::SATA Cable:: User Manual"

Overclocking: "YES"

Hardware Monitoring: "CPUSystem Temperature Detection, Fan Speed Detection, Smart Fan 5"

Support CDs: "NO"

Bundled Software: "App Center Utilities"

OS Support: "Windows 1011"

BIOS: "UEFI BIOS"

Advanced Technologies: "Q-Flash, App Center Support"

Advanced Features: "Smart Fan 5, RGB Fusion, Ultra Durable Components"

Number of Memory Slots: "2 Slots"

Memory Configuration: "64 GB DDR4 Dual Channel DDR4"

Memory Frequency: "3200 MHz"

ECC Support: "NON-ECC"

Buffered Memory: "No"

: "Limited by CPU & Cooling"

Dimensions: "226 x 185"

Weight: "500 g"

Form Factor: "Micro-ATX"

Socket Type: "AM4"

Compatible Processors: "AMD Ryzen (1st2nd3rd Gen)"

Chipset: "AMD B450, B450 Southbridge"

Chipset Manufacturer: "AMD"

Integrated Graphics card: "Depends on CPU"

External Graphics Card Support: "Yes"

Side Port Memory: "no"

Multi GPU Support: "No"

SATA 1.5 Gb/s: "no"

SATA 3 Gb/s: "no"

SATA 6 Gb/s: "4, YES"

RAID Controller: "YES"

RAID Configurations: "RAID 0110"

PATA Ultra DMA: "0, no"

PCI Slots: "0"

PCIe x1 Slots, Generation: "1"

PCIe x2 Slots, Generation: "0"

PCIe x4 Slots, Generation: "0"

PCIe x8 Slots, Generation: "0"

PCIe x16 Slots, Generation: "1"

Mini PCIe Slots: "0"

Brand: "GIGABYTE"

Series: "Ultra Durable"

Model ID: "B450M K"

Designed For: "Desktop"

Color: "Black"

Capacity: "64 GB"

Key Features: "AMD AM4 Socket, DDR4 Support, Micro ATX, Budget Board"

Ethernet Controller: "Realtek GbE LAN"

Ethernet Card: "YES"

Ethernet Features: "101001000 Mbps"

Number of Printer Ports: "0"

Number of Com Ports: "0"

Wireless and Bluetooth: "no and no"

Audio Codec: "Realtek HD Audio"

Audio Channels: "7.1"

Audio Features: "High Definition Audio"

SATA 1.5 Gb/s Headers: "0"

SATA 3 Gb/s Headers: "0"

SATA 6 Gb/s Headers: "4"

IEEE 1394a Headers: "0"

USB 2.0 Headers: "1"

USB 3.0 Headers: "1"

ATX Power Connectors: "1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)"

Fan Headers: "1 (Processor Fan Headers), 1 (System Fan Headers)"

Front Panel Headers: "3"

Other Connectors: "HDMI, VGA, LAN, Audio Jacks"

VGA/Dsub Connectors: "1"
