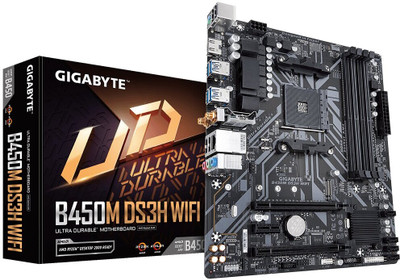

GIGABYTE B450M DS3H WIFI AM4Socket Micro-ATX AMD B450 Chipset DDR4 Motherboard for Desktop

USB 2.0 Ports, Controller: "4"

USB 3.0 Ports, Controller: "6"

eSATA Ports, Controller: "0"

HDMI Ports: "1"

IEEE 1394a Ports: "0"

DVI Ports: "0"

VGA/D Sub Ports: "0"

Audio I/O Channels: "3"

Optical S/PDIF Ports and S/PDIF Out ports: "0 (Optical SPDIF Ports)"

RJ-45 Ethernet Jacks: "1"

PS/2: "1"

Sales Package: "Motherboard::User Manual::SATA Cable:: IO Shield:: WiFi Antenna"

Processor Clock Speed: "Depends on CPU GHz"

Overclocking: "Memory OC supported"

Hardware Monitoring: "Voltage, Temperature, Fan Speed, Overheating Warning"

Support CDs: "YES"

Bundled Software: "APP Center, Norton Security, cFosSpeed"

OS Support: "Windows 710"

BIOS: "UEFI BIOS"

Advanced Technologies: "PCIe Gen3, M.2 NVMe, RGB Fusion"

Advanced Features: "RGB Fusion 2.0, Smart Fan 5, Q-Flash"

Number of Memory Slots: "4 Slots"

Memory Configuration: "64 GB DDR4 Dual Channel DDR4"

Memory Frequency: "3600 MHz"

ECC Support: "Non-ECC"

Buffered Memory: "No"

: "CPU dependent features"

Dimensions: "244 x 215 mm"

Weight: "1000 g"

Form Factor: "Micro-ATX"

Socket Type: "AM4"

Compatible Processors: "AMD Ryzen 5000 4000 3000 2000 1000 Series, Athlon"

Chipset: "AMD B450, Integrated"

Chipset Manufacturer: "AMD"

Integrated Graphics card: "Depends on CPU"

External Graphics Card Support: "Yes"

Side Port Memory: "no"

Multi GPU Support: "Yes"

SATA 1.5 Gb/s: "no"

SATA 3 Gb/s: "no"

SATA 6 Gb/s: "4, Yes"

RAID Controller: "YES"

RAID Configurations: "RAID 0, 1, 10"

PATA Ultra DMA: "0, no"

PCI Slots: "0"

PCIe x1 Slots, Generation: "2"

PCIe x2 Slots, Generation: "0"

PCIe x4 Slots, Generation: "0"

PCIe x8 Slots, Generation: "0"

PCIe x16 Slots, Generation: "1"

Mini PCIe Slots: "0"

Brand: "GIGABYTE"

Series: "Ultra Durable"

Model ID: "B450M DS3H WIFI"

Designed For: "Desktop"

Color: "Black"

Key Features: "Supports AMD Ryzen 10005000 Series,DDR4 up to 3600 MHz (OC),Built-in WiFi + Bluetooth,PCIe Gen3 + M.2 NVMe,RGB Fusion 2.0"

Ethernet Controller: "Realtek GbE LAN"

Ethernet Card: "YES"

Ethernet Features: "Gigabit LAN"

Number of Printer Ports: "0"

Number of Com Ports: "1"

Wireless and Bluetooth: "Intel Dual Band 802.11ac WiFi and YES"

Audio Codec: "Realtek ALC887"

Audio Channels: "7.1"

Audio Features: "High Definition Audio, Audio Noise Guard"

SATA 1.5 Gb/s Headers: "0"

SATA 3 Gb/s Headers: "0"

SATA 6 Gb/s Headers: "4"

IEEE 1394a Headers: "0"

USB 2.0 Headers: "2"

USB 3.0 Headers: "1"

ATX Power Connectors: "0 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)"

Fan Headers: "1 (Processor Fan Headers), 1 (System Fan Headers)"

Front Panel Headers: "1"

Other Connectors: "TPM Header, RGB Headers, M.2 Slot"

VGA/Dsub Connectors: "0"
