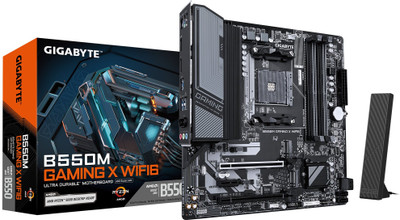

GIGABYTE B550M GAMING X WIFI6 AM4Socket Micro-ATX AMD B550 Chipset DDR4 Motherboard for Desktop

USB 2.0 Ports, Controller: "2"

USB 3.0 Ports, Controller: "4"

eSATA Ports, Controller: "0"

HDMI Ports: "1"

IEEE 1394a Ports: "0"

DVI Ports: "0"

VGA/D Sub Ports: "0"

Audio I/O Channels: "3"

Optical S/PDIF Ports and S/PDIF Out ports: "0 (Optical SPDIF Ports)"

RJ-45 Ethernet Jacks: "1"

PS/2: "1"

Sales Package: "Motherboard::WiFi antenna::SATA cables::user manual"

Processor Clock Speed: "Depends on CPU GHz"

Overclocking: "YES"

Hardware Monitoring: "YES"

Support CDs: "NO"

Bundled Software: "Gigabyte Control Center"

OS Support: "Windows 1011"

BIOS: "UEFI AMI BIOS"

Advanced Technologies: "AMD StoreMI, XMP support, PCIe 4.0"

Advanced Features: "PCIe 4.0, Smart Fan 6, RGB Fusion, WiFi 6"

Number of Memory Slots: "4 Slots"

Memory Configuration: "128 GB DDR4 Dual Channel DDR4"

Memory Frequency: "4733 MHz"

ECC Support: "ECC Non-ECC support"

Buffered Memory: "No"

: "No DDR5 support"

Dimensions: "244 x 244 mm"

Form Factor: "Micro-ATX"

Socket Type: "AM4"

Compatible Processors: "AMD Ryzen"

Chipset: "AMD B550, B550"

Chipset Manufacturer: "AMD"

Integrated Graphics card: "Yes (APU Required)"

External Graphics Card Support: "Yes"

Side Port Memory: "no"

Multi GPU Support: "No"

SATA 1.5 Gb/s: "no"

SATA 3 Gb/s: "no"

SATA 6 Gb/s: "4, Yes"

RAID Controller: "YES"

RAID Configurations: "RAID 0110"

PATA Ultra DMA: "0, no"

PCI Slots: "0"

PCIe x1 Slots, Generation: "1"

PCIe x2 Slots, Generation: "0"

PCIe x4 Slots, Generation: "1"

PCIe x8 Slots, Generation: "0"

PCIe x16 Slots, Generation: "1"

Mini PCIe Slots: "0"

Brand: "GIGABYTE"

Series: "Gaming Series"

Model ID: "B550M GAMING X WIFI6"

Designed For: "Desktop"

Color: "Black"

Key Features: "WiFi 6, PCIe 4.0, DDR4, Dual M.2, RGB Fusion"

Ethernet Controller: "Realtek GbE LAN"

Ethernet Card: "YES"

Ethernet Features: "Gigabit Ethernet"

Number of Printer Ports: "0"

Number of Com Ports: "1"

Wireless and Bluetooth: "Wi-Fi 6 and YES"

Audio Codec: "Realtek HD Audio Codec"

Audio Channels: "7.1"

Audio Features: "High-end audio capacitors, noise guard"

SATA 1.5 Gb/s Headers: "0"

SATA 3 Gb/s Headers: "0"

SATA 6 Gb/s Headers: "4"

IEEE 1394a Headers: "0"

USB 2.0 Headers: "1"

USB 3.0 Headers: "1"

ATX Power Connectors: "0 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)"

Fan Headers: "1 (Processor Fan Headers), 2 (System Fan Headers)"

Front Panel Headers: "1"

Other Connectors: "DisplayPort, USB 3.2, Audio jacks"

VGA/Dsub Connectors: "0"
