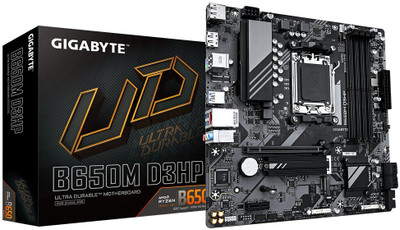

GIGABYTE B650M D3HP AM5Socket Micro-ATX AMD B650 Chipset DDR5 Motherboard for Desktop

USB 2.0 Ports, Controller: "4"

USB 3.0 Ports, Controller: "6"

eSATA Ports, Controller: "0"

HDMI Ports: "1"

IEEE 1394a Ports: "0"

DVI Ports: "0"

VGA/D Sub Ports: "1"

Audio I/O Channels: "3"

Optical S/PDIF Ports and S/PDIF Out ports: "0 (Optical SPDIF Ports)"

RJ-45 Ethernet Jacks: "1"

PS/2: "1"

Sales Package: "Motherboard::SATA Cables::IO Shield::User Manual"

Processor Clock Speed: "Depends on CPU GHz"

Overclocking: "YES"

Hardware Monitoring: "CPUSystem Temperature Detection, VRM Monitoring, Fan Speed Detection, Smart Fan 6"

Support CDs: "No"

Bundled Software: "Gigabyte Control Center"

OS Support: "Windows 1011"

BIOS: "UEFI BIOS"

Advanced Technologies: "Q-Flash, Smart Fan 6"

Advanced Features: "PCIe 4.0, Smart Fan 6, RGB Header Support"

Number of Memory Slots: "4 Slots"

Memory Configuration: "128 GB DDR5 Dual Channel DDR5-DIMM"

Memory Frequency: "6400+ MHz"

ECC Support: "Non-ECC"

Buffered Memory: "No"

: "No PCIe 5.0 GPU slot"

Dimensions: "244 x 35 x 244 mm"

Weight: "900 g"

Form Factor: "Micro-ATX"

Socket Type: "AM5"

Compatible Processors: "AMD Ryzen 7000 Series"

Chipset: "AMD B650, Integrated in B650"

Chipset Manufacturer: "AMD"

Integrated Graphics card: "Depends on CPU (APU required)"

External Graphics Card Support: "Yes"

Side Port Memory: "no"

Multi GPU Support: "No"

SATA 1.5 Gb/s: "no"

SATA 3 Gb/s: "no"

SATA 6 Gb/s: "4, YES"

RAID Controller: "YES"

RAID Configurations: "RAID 0110"

PATA Ultra DMA: "0, no"

PCI Slots: "0"

PCIe x1 Slots, Generation: "2"

PCIe x2 Slots, Generation: "0"

PCIe x4 Slots, Generation: "0"

PCIe x8 Slots, Generation: "0"

PCIe x16 Slots, Generation: "1"

Mini PCIe Slots: "0"

Brand: "GIGABYTE"

Series: "Ultra Durable"

Model ID: "B650M D3HP"

Designed For: "Desktop"

Color: "Black"

Capacity: "128 GB"

Key Features: "DDR5 Support, PCIe 4.0, M.2 Storage, Smart Fan 6, Gigabit LAN"

Ethernet Controller: "Realtek GbE LAN"

Ethernet Card: "YES"

Ethernet Features: "Gigabit LAN"

Number of Printer Ports: "0"

Number of Com Ports: "0"

Wireless and Bluetooth: "no and no"

Audio Codec: "Realtek Audio Codec"

Audio Channels: "7.1"

Audio Features: "High Quality Capacitors"

SATA 1.5 Gb/s Headers: "0"

SATA 3 Gb/s Headers: "0"

SATA 6 Gb/s Headers: "4"

IEEE 1394a Headers: "0"

USB 2.0 Headers: "2"

USB 3.0 Headers: "1"

ATX Power Connectors: "1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)"

Fan Headers: "1 (Processor Fan Headers), 3 (System Fan Headers)"

Front Panel Headers: "3"

Other Connectors: "Audio Jacks, LAN, USB Ports"

VGA/Dsub Connectors: "1"
